TPS61221DCKR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS61221DCKR
Datasheet:
Description:

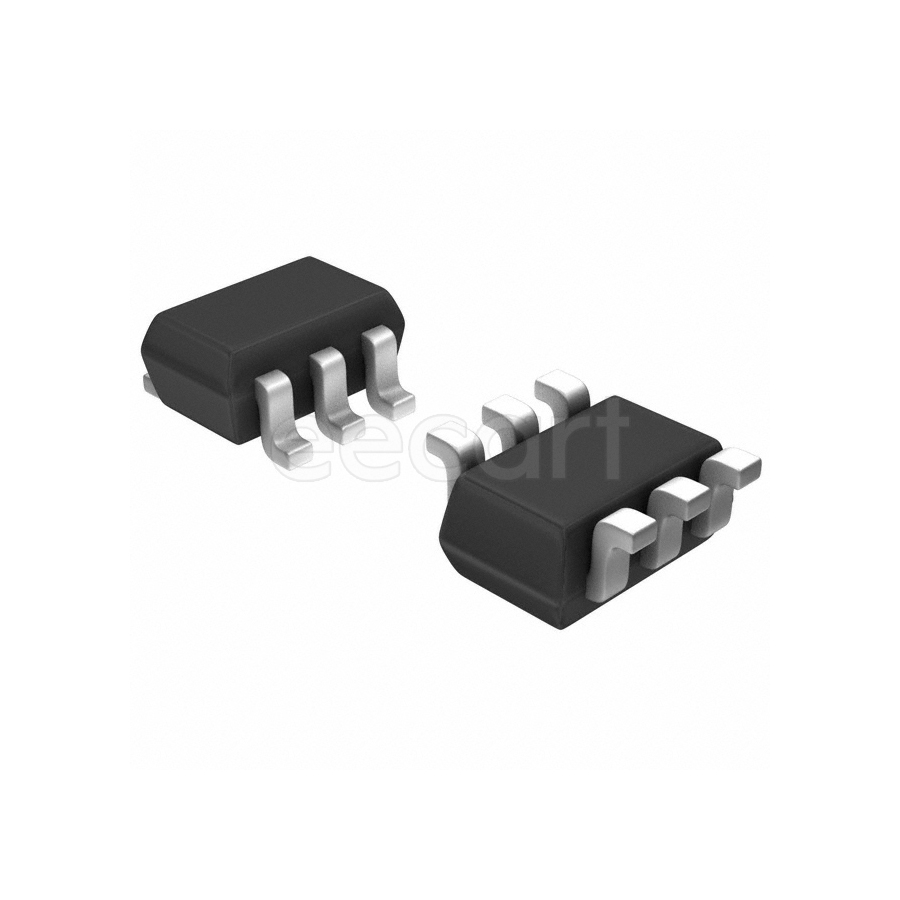

Voltage Regulators - Switching SC-70-6 SMD/SMT Boost Fixed 3.3 V
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 1.1 mm |
| Thickness | 0.9 mm |
| Radiation Hardening | No |
| Min Input Voltage | 700 mV |
| Output Current | 400 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Lifecycle Status | Active |
| Min Supply Voltage | 700 mV |
| Max Output Current | 500 mA |
| Quiescent Current | 5 µA |
| Synchronous Rectifier | Yes |
| Output Configuration | Positive |
| Topology | Boost |
| Switching Frequency | 2 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 500 nA |
| Efficiency | 95 % |
| Min Output Voltage | 3.3 V |
| Max Output Voltage | 3.3 V |
| RoHS | Compliant |
| Packaging | Reel |
| Function | Step-Up |
Stock: 1
Distributors
pcbx
pcbxUnit Price$141.43200
Ext.Price$141.43200
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $141.43200 | $141.43200 |
| 10 | $139.90978 | $1399.09780 |
| 25 | $138.40349 | $3460.08725 |
